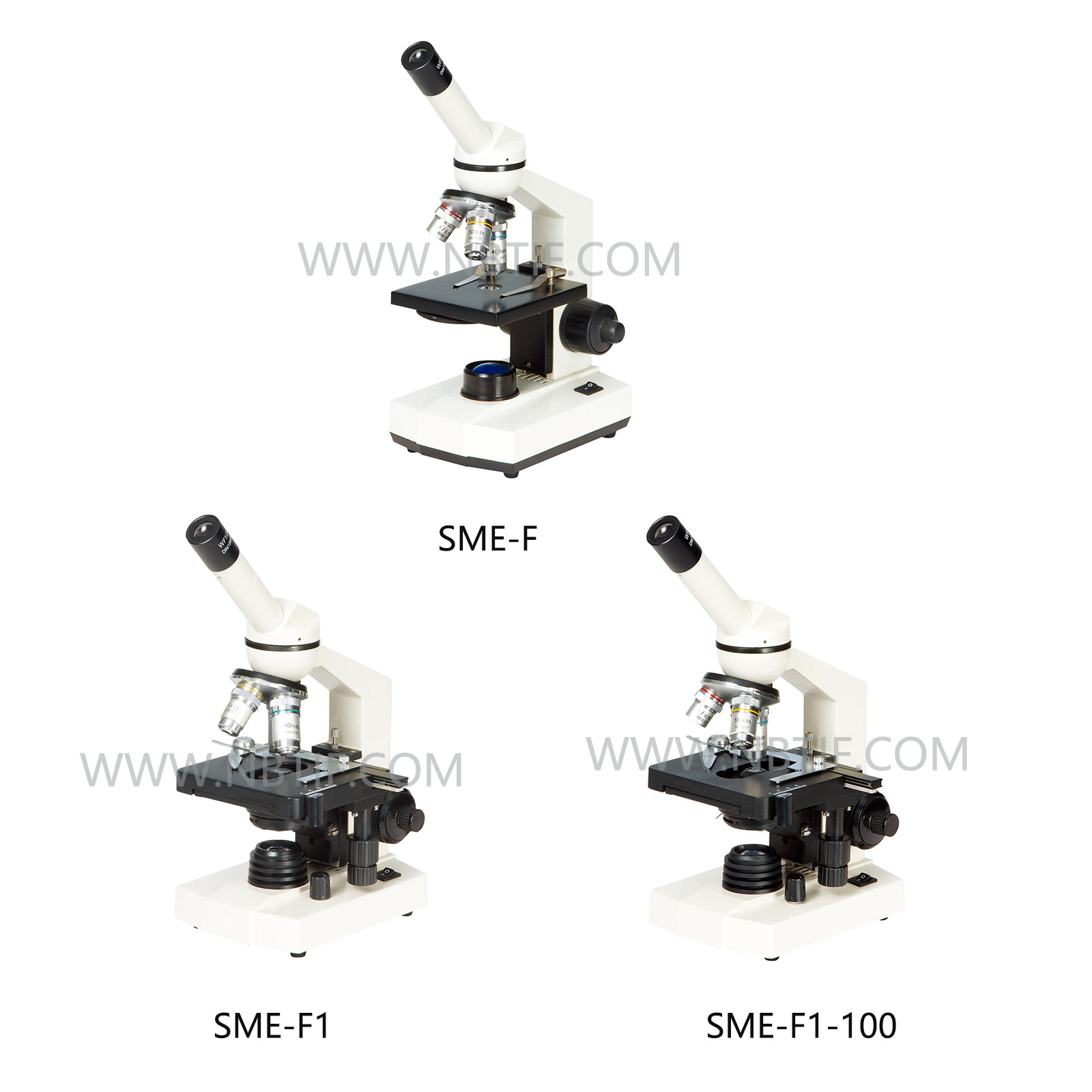

SME-F、F1、F1-100
Specification
SME-F
SME-F1
SME-F1-100
Viewing Head
Monocular Inclined at45°,360°Rotatable
Eyepiece
WF10×/18mm
Objective
Achromatic 4×、10×、40×(s)
Achromatic 4×、10×、40×(s)、100×(s)oil
Stage
Plain stage with slide clips
Stage size:110mm×110mm
Double layers mechanical stage
Stage size:110mm×126mm
Moving range:70mm×30mm
Condenser
Single lens with Disc diaphragm
N.A.1.25Abbe Condenser with iris diaphragm and
filter
Focusing
Coaxial coarse & fine focusing adjustment
Fine focusing scale value 0.002mm
Light Source
Incandescent lamp 220V/20W or 110V/20W
Optinal
Accessory
Eyepiece:WF16×、WF20×、
Objective:20×、60×(s)
Halogen bulb 6V/20W,AC 220V/110V
LED illumination
