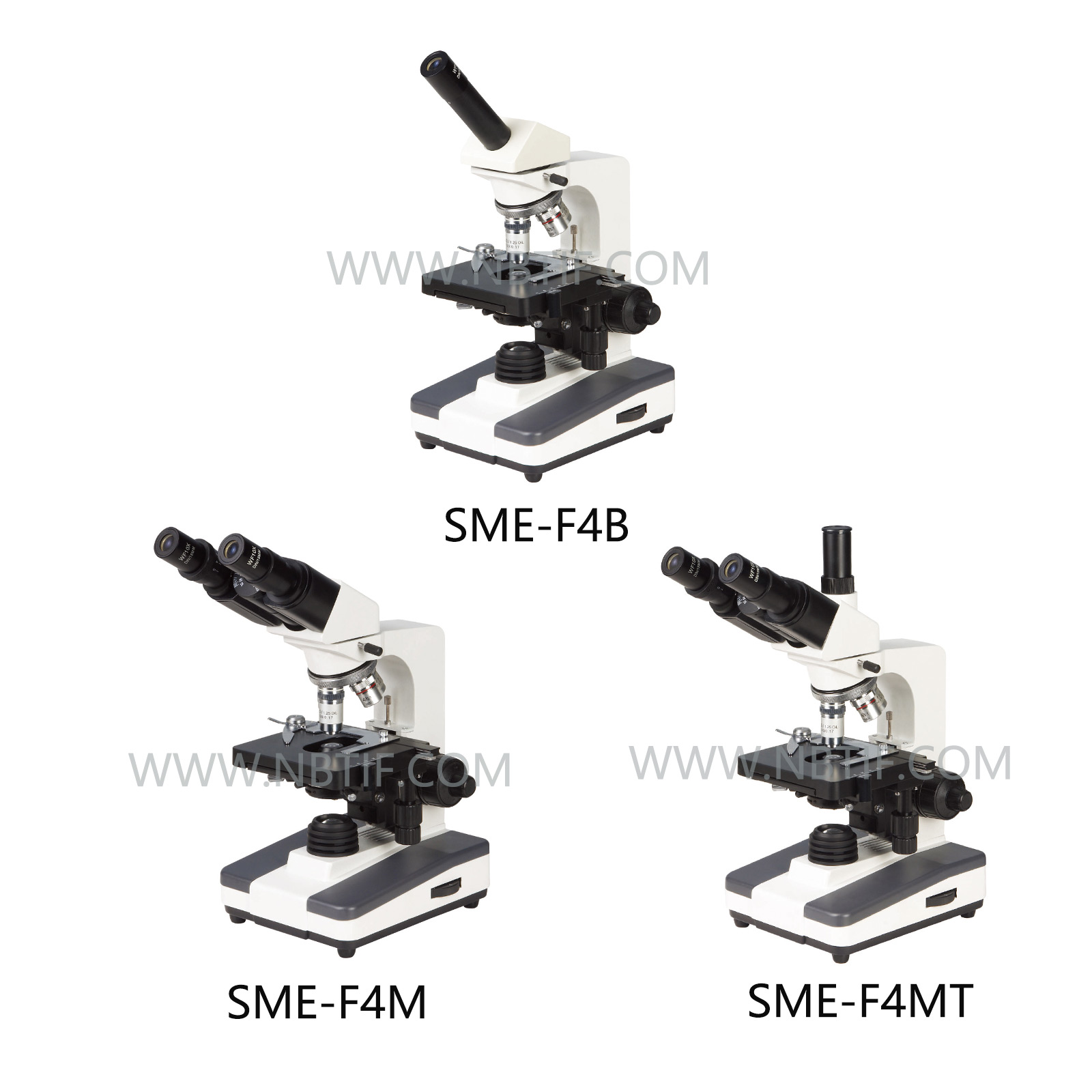

SME-F4B、F4M、F4MT
Specification
Model
SME-F4B
SME-F4M
SME-F4MT
Viewing Head
Monocular Inclined at 45°,360°Rotatable
Compensation Free Binocular Head,Inclined at
30°(55mm-75mm)
Compensation Free Trinocular Head,Inclined
at 30°(55mm-75mm)
Eyepiece
WF10×/18mm
Objective
Achromatic 4×、10×、40×(s)、100×(s)oil
Stage
Double layers mechanical stage
Stage size:125mm×130mm
Moving Range:70mm×30mm
Condenser
N.A.1.25Abbe Condenser with iris diaphragm
and filter
Focusing
Coaxial coarse & fine focusing adjustmentFine
focusing scale value 0.002mmFocusing Range
30mm
Light Source
Halogen bulb 6V/20W,AC 220V/110V
Adjustable light source
OptinalAccessory
Eyepiece:WF16×、WF20×、P16×
Objective:20×、60×(s)
Reflective Mirror,Demonstration(Teaching)Head
CCD Adapte
Compensation Free Binocular & Trinocular Head(48mm-75mm)
LED illumination
