It is widely used in spot inspecting and measuring in the factory and observation and research in Laboratory.It is specially suitable for production locale inspecting for mechanical,paper making manufacture and print,textile industry,etc.This product is small and exquisite,novel designed and exquisite,novel designed and operation easy,also suitable for student's experiment.
|
Specification
|

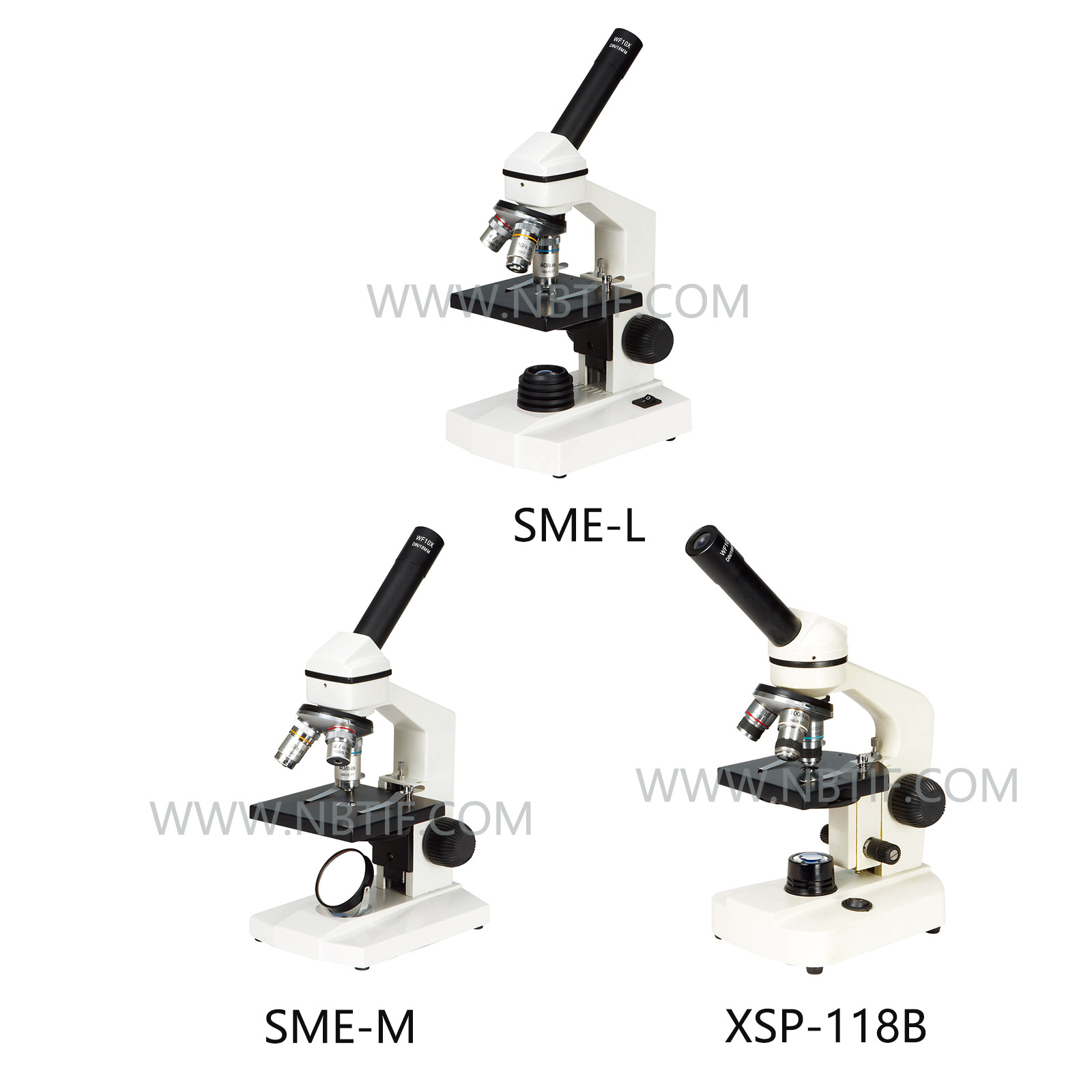

Model
|
|||
|
SME-M
|
SME-L
|
XSP-118B
|
||
|
Viewing Head
|
Monoculer lnclined at 45°
|
●
|
●
|
|
|
360° Rotatable
|
|
|
●
|
|
|
Eyepiece
|
WF10X
|
●
|
●
|
●
|
|
Objective
|
Achromatic 4X、10X、40X（s）
|
●
|
●
|
●
|
|
Stage
|
Plain stage with slide clips
Stage size: 110mmX110mm
|
●
|
●
|
|
|
Plain stage with slide clips
Stage size: 110mmX105mm
|
|
|
●
|
|
|
Condenser
|
Singlelens with Disc diaphragm
|
●
|
●
|
●
|
|
Focusing
|
Coarse Focusing Adjustment
|
●
|
●
|
|
|
Separated coarse&fine
focusing adjustment
|
|
|
●
|
|
|
Light Source
|
Incandescent lamp
220V/20W or 110V/20W
|
|
|
●
|
|
Reflective Mirror
|
●
|
●
|
|
|
|
Optional Accessory
|
Eyepiece：WF16X、P16X
Objective：20X、60X（s）、100X(s)oil
LED illumination
|
|||
