| Product |
 |
|
Specification
|

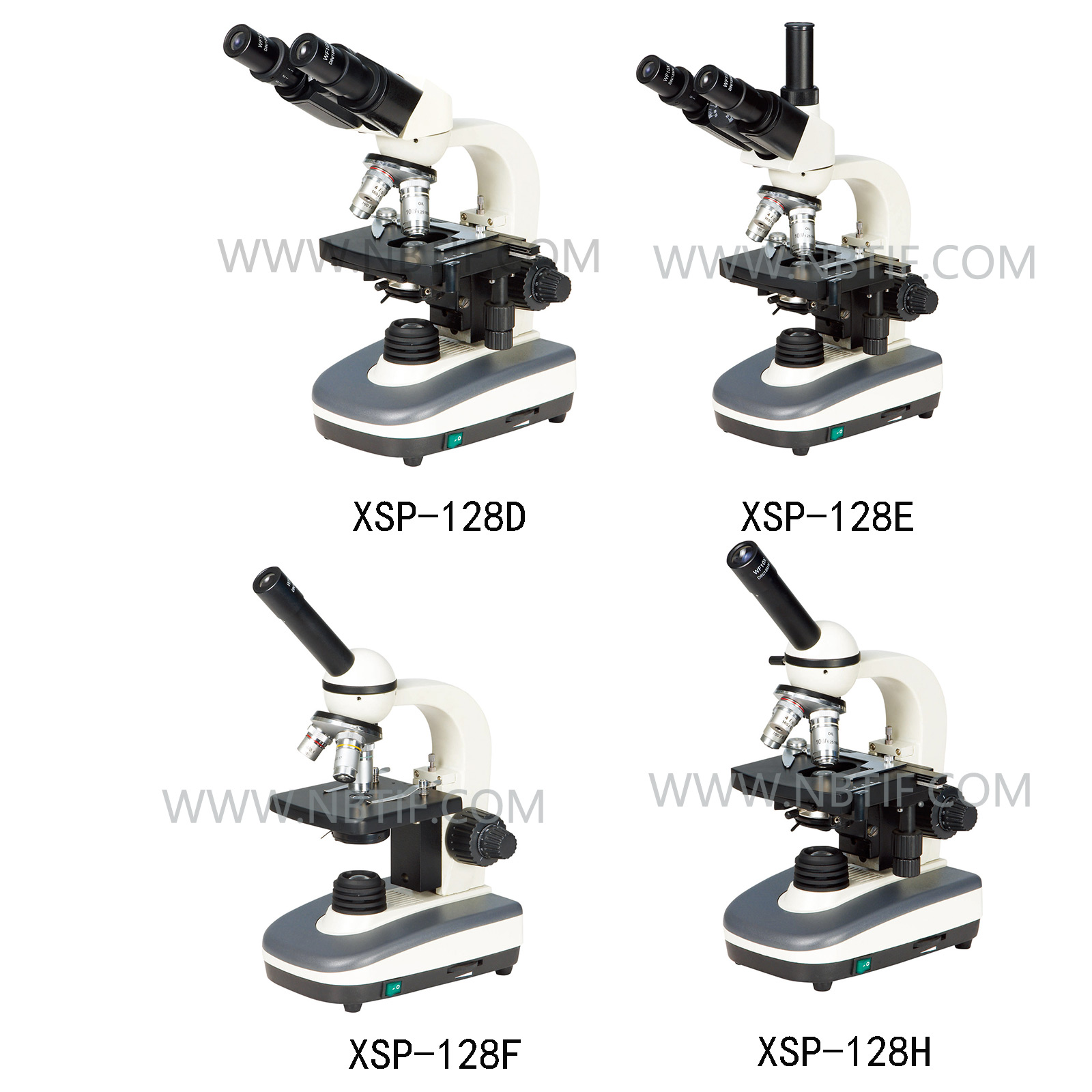

Model
|
|||||
|
XSP-128M
|
XSP-128F
|
XSP-128H
|
XSP-128D
|
XSP-128E
|
||
|
Viewing Head
|
Monocular Inclined at45°,360°
Rotatable
|
●
|
●
|
●
|
|
|
|
Compensation Free Binocular
Head,Inclined at
30°(55mm-75mm)
|
|
|
|
●
|
|
|
|
Compensation Free Trinocular
Head,Inclined at
30°(55mm-75mm)
|
|
|
|
|
●
|
|
|
Eyepiece
|
WF10×/18mm
|
●
|
●
|
●
|
●
|
●
|
|
Objective
|
Achromatic 4×、10×、40×(s)
|
●
|
●
|
|
|
|
|
Achromatic4×、10×、40×(s)、100×(s)oil
|
|
|
●
|
●
|
●
|
|
|
Stage
|
Plain stage with slide clips
Stage size:120mm×125mm
|
●
|
●
|
|
|
|
|
Double layers mechanical stage
Stage size:135mm×135mm
Moving range:70mm×30mm
|
|
|
●
|
●
|
●
|
|
|
Condenser
|
0.65 Condenser with disc
diaphragm
|
●
|
|
|
|
|
|
0.65 Condenser with iris
diaphragm
|
|
●
|
|
|
|
|
|
N.A.1.25 Abbe Condenser with
iris diaphragm And filter
|
|
|
●
|
●
|
●
|
|
|
Focusing
|
Coaxial coarse & fine focusing
adjustment Fine focusing scale
value 0.002mm
|
●
|
●
|
●
|
|
●
|
|
Light Source
|
Incandescent lamp 220V/20W or
110V/20W
|
●
|
|
|
|
|
|
Fluorescent lamp 220V/5W or
110V/5W
|
|
●
|
|
|
|
|
|
Halogen bulb 6V/20W,AC
220V/110V Adjustable light
intensity
|
|
|
●
|
●
|
●
|
|
|
OptinalAccessory
|
Eyepiece:WF16×、WF20×、Pl6×
Objective:20×、60×(s)
Reflective Mirror,Demonstration(Teaching)Head
Compensation Free Binocular & Trinocular Head(48mm-75mm)
LED illumination
|
|||||
