Product
Biological Microscope Now:Home > Product > Biological Microscope

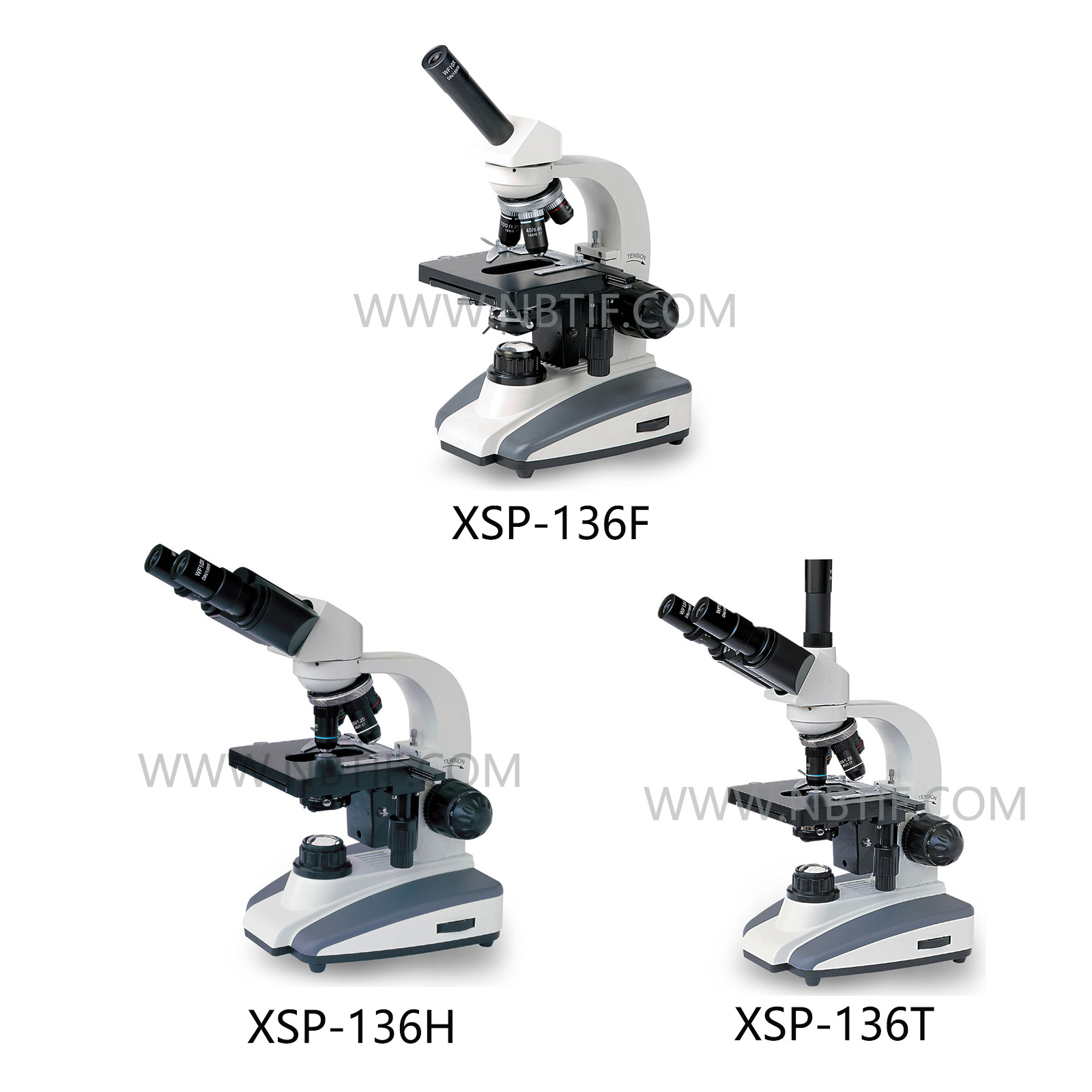

XSP-136F、136H、136T


This series microscope is developed for various applied scopes. From daily work to scientific research, it is widely used in Biology, Histology, Pathology, Medicament chemistry research and Clinical examination. It is also used for education  Colleges and Schools.

Specification
Model
XSP-136F
XSP-136H
XSP-136T
Viewing head
Monocular Head.Inclined at 45 °
Compensation Free Binocular Head. Inclined at  3 0 ° ( 55mm -
75mm )
Compensation Free Trinocular Head. Inclined at  3 0 ° ( 55mm -
75mm )
Eyepiece
WF10 ×
Objective
Achromatic objective: 4X ,10X ,40X (S),100X (S)Oil
Stage
Double layers mechanical stage
Stage size: 140mm × 140mm
Moving range: 75mm × 50mm
Condenser
N.A1.25 Abbe condenser with iris diaphragm &  filter
Focusing
Coaxial coarse & fine focusing adjustment with  rack and pinion
mechanism Fine focusing scale Value 0.002mm
Collector
High brightness collector and can be  interconverted with Kohler
illumination
Light source
Halogen tungsten bulb 6V/30W.AC 85V-230V
Adjustable brightness
Optional Accessory
Eyepieces:
WF16x,WF20x,P16x 1.3 Mega pixels CMOS electronic eyepiece .
Semi-plan   objectives:
4X,10X,20X(S),40(S),60X(S),100(S)Oil
Photo and CDD attachment
