| Product |
 |
|
Specificaon
|
Modle
|
||
|

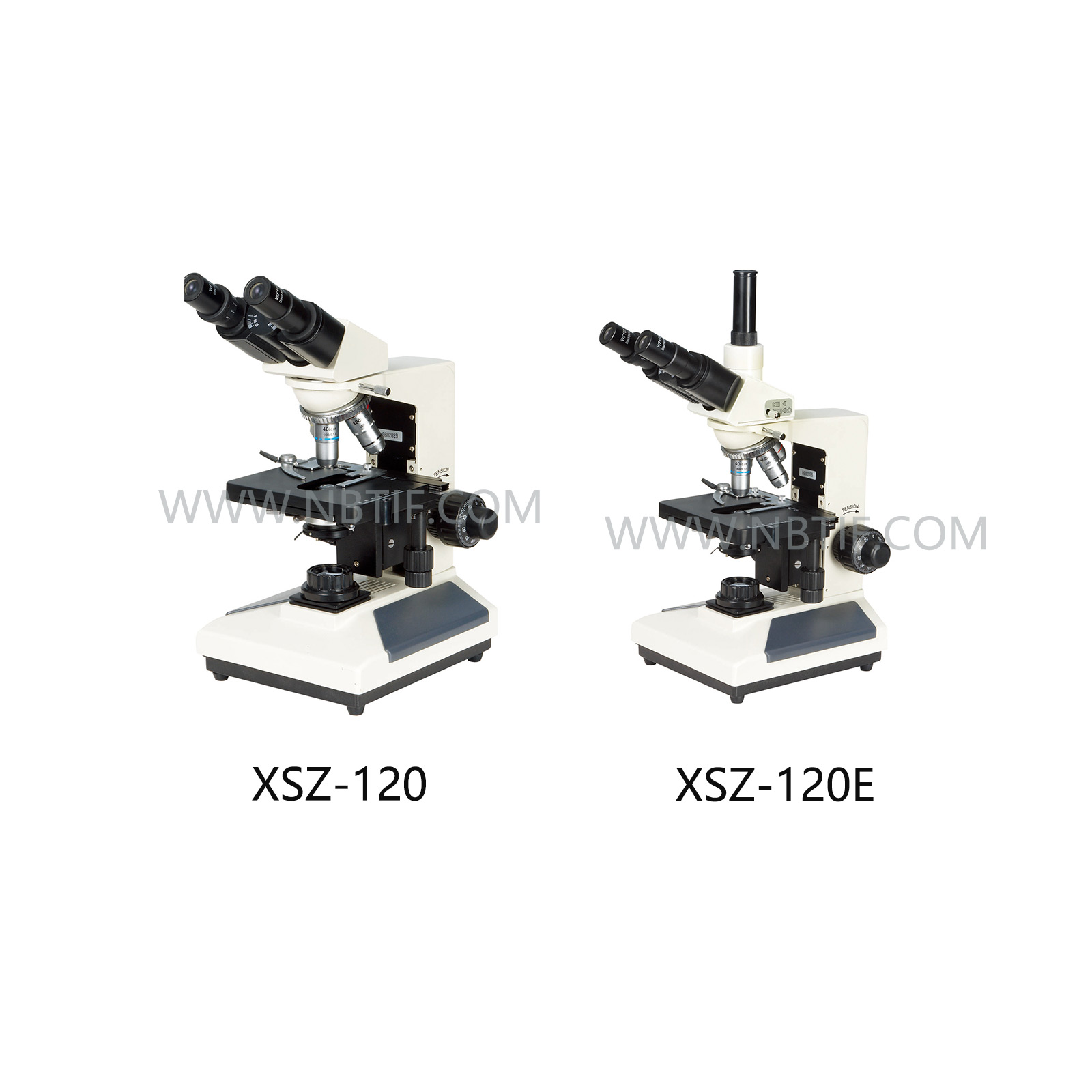

XSZ-120
|
XSZ-120E
|
||
|
Viewing Head
|
Compensation Free Binocular Head, Inclined at 30°
(55mm-75mm)
|
●
|
|
|
Compensation Free Trinoculaar Head, Inclined at
30°(55mm-75mm)
|
|
●
|
|
|
Eyepiece
|
WF10×/18mm
|
●
|
●
|
|
Objective
|
Achromatic 4×、10×、40×(s)、100×(s)Oil
|
●
|
●
|
|
Stage
|
Double layer mechanical stage
|
●
|
●
|
|
Stage Sixe:160mm×140mm
|
|||
|
Moving Range:80mm-50mm
|
|||
|
Condenser
|
N.A.1.25 Abbe condenser with iris diaphragm and filter
|
●
|
●
|
|
Fcusing
|
Coaxial coarse & fine focusing adjustmen Fine
focusing scale value 0.002mm
|
●
|
●
|
|
Light Source
|
Halogen bulb 6V20W or 6V15W, AC 220V/110V
Adjustable light source
|
●
|
●
|
|
Optional Accessory
|
Eyepiece：WF16×、WF20×、P16×
Objective：20×、60(s)
Semi-plan Objective:4×、10×、20×、40×(s)、60×(s)、100×(s)oil
Plan Objective:4×、10×、20×、40×(s)、60×(s)、100×(s)oil
Reflective Mirror, Demonstration(Teaching) Head Dark field and Phase contrast
device
1.3Mega、2.0Mega、3.0Mega、5.0Mega pixels CMOS Digital camera eyepiece
Photography attchment and CCD Adapter 0.5×、0.57×、0.75×
Compensation Free Binocular & Trinocular Head (48mm-75mm)
LED illumination
|
||
