| Product |
 |
|
Specification
|

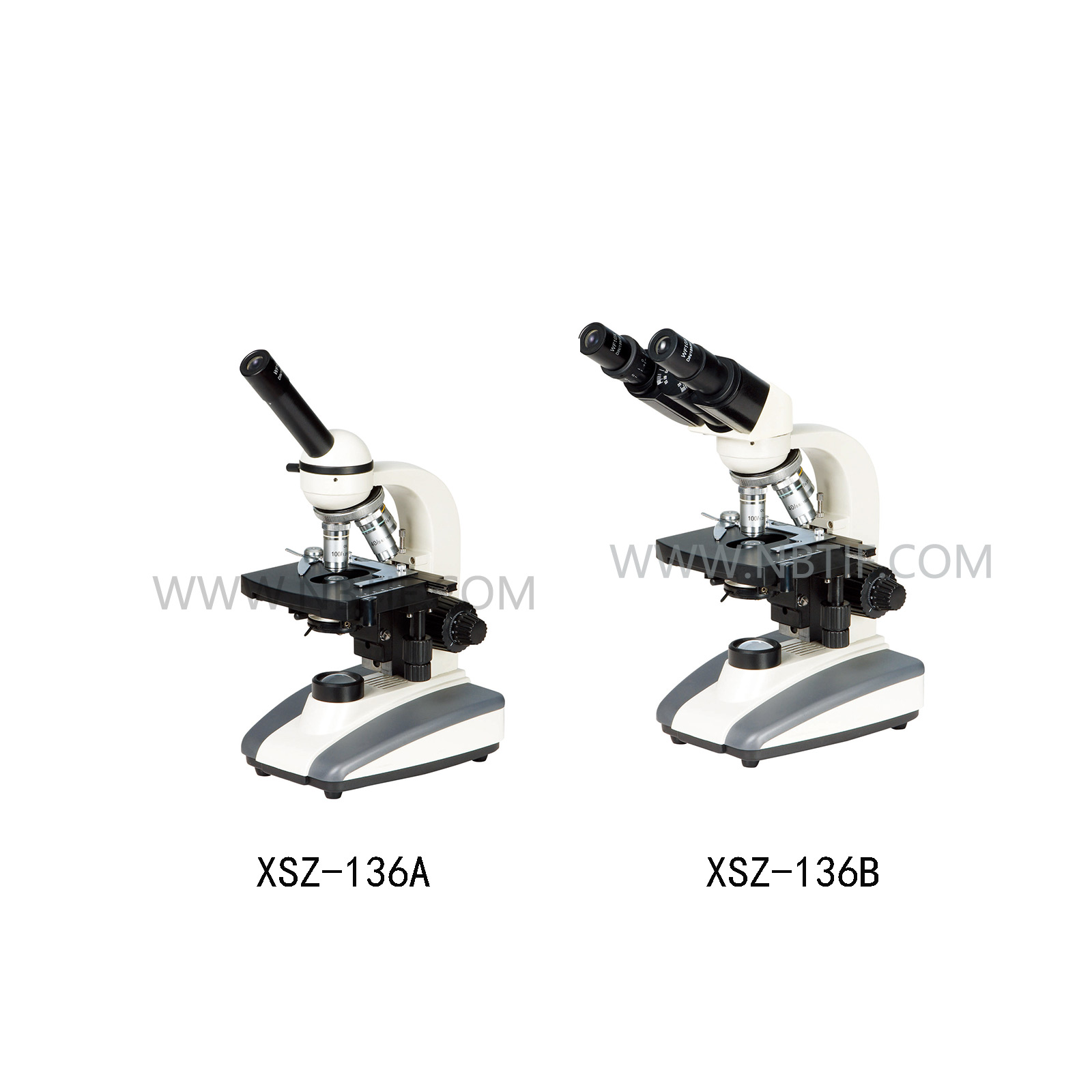

Model
|
|||
|
XSZ-136A
|
XSZ-136B
|
XSZ-136E
|
||
|
Viewing Head
|
Monocular Inclined at45°,360°Rotatable
|
●
|
|
|
|
Compensation Free Binocular Head,Inclined at
30°(55mm-75mm)
|
|
●
|
|
|
|
Compensation Free Trinocular Head,Inclined at
30°(55mm-75mm)
|
|
|
●
|
|
|
Eyepiece
|
WF10×/18mm
|
●
|
●
|
●
|
|
Objective
|
Achromatic 4×、10×、40×(s)、100×(s)oil
|
●
|
●
|
●
|
|
Stage
|
Double layers mechanical stage
|
●
|
●
|
●
|
|
Stage size:135mm×135mm
|
||||
|
Moving Range:70mm×30mm
|
||||
|
Condenser
|
N.A.1.25Abbe Condenser with iris diaphragm
and filter
|
●
|
●
|
●
|
|
Focusing
|
Coaxial coarse & fine focusing adjustment
Fine focusing scale value 0.002mm
|
●
|
●
|
●
|
|
Light Source
|
Halogen bulb 6V/20W,AC 220V/110V
|
●
|
●
|
●
|
|
OptinalAccessory
|
Eyepiece:WF16×、WF20×
Objective:20×、60×(s)
Compensation Free Binocular & Trinocular Head(48mm-75mm)
LED illumination
|
|||
