X151-100、 X151-50 、X151-40 、X151-20

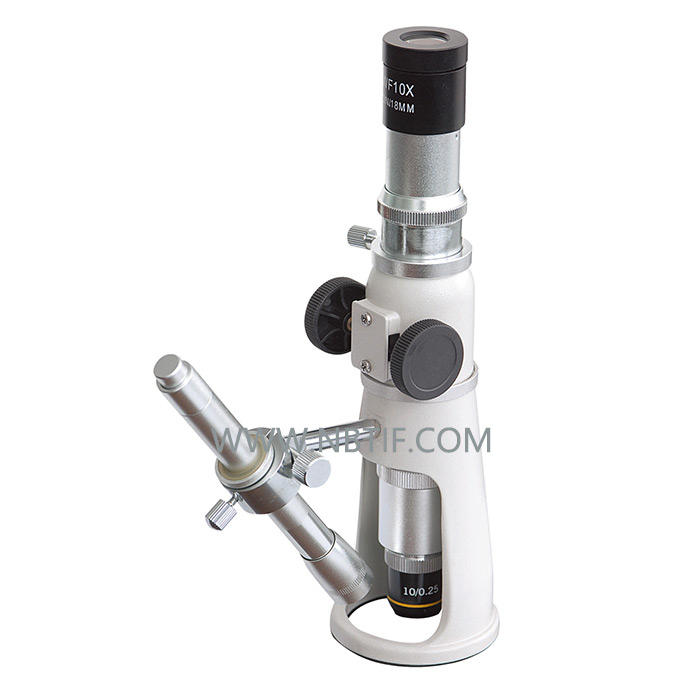

Portabele Measuring Microscope
It is widely used in spot inspecting and measuring in the factory and observation and research in Laboratory.It is specially suitabel for production locale inspecting for mechanical,paper making manufacture and print,textile industry,etc.This product is small and exquisite,novel designed and exquisite,novel designed and operation easy,also suitable for student’s experiment.
Specification
Model
X151-100
X151-50
X151-40
X151-20
Total Magnification
100X
50X
40X
20X
Mechanical Tube Length
160mm
Objective Magnification
10X
5X
4X
2X
Numerical Aperture(N.A.)
0.25
0.12
0.10
0.05
Working Distance(mm)
7
18
18
18
Eyepiece
WF10X,crosshair with reticule 0 1mm
Focusing Range
30mm
Diameter of Viewing field in Eyepiece
¢18mm
Diameter of base
¢63mm
Height of Micriscope
210mm
Weight of Micriscope
0.65kg
lllumination
The pen type lamp,use2X7battery
Lnstrument size
143mmX63mmX210mm
