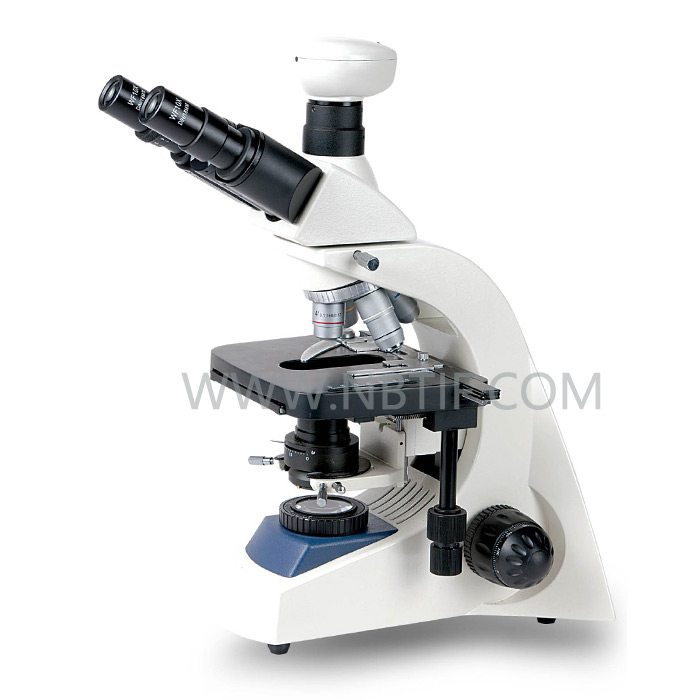

Model XSZ-148 Digital Microscope is a reformation of microscope .It breaks
through the utmost of the functions of normal microscope and initiates an epoch
in micro technology ! Through installing CMOS transmitting it to computer by
digital technology being applied in the microscope enlarges the application
range of microscopes.
The image measuring software which is specially
developed for digital microscope makes the user observe the image data more
clearly .The image displayed on the screen of computer can be enlarged hundreds
times more than the one observed by eyepiece .That makes you observe the
specimen more clearly and easily.
Specification
|
Model
|
||
XSZ-146S
|
XSZ-148S
|
||
Viewing head |
0.3Mega pixels CMOS Digital Compensation
Free Binocular Head .Inclined at 3 0 ° |
○
|
○
|
1.3Mega pixels CMOS Digital Compensation
Free Binocular Head .Inclined at 3 0 ° |
●
|
●
|
|
Interpupillary Distance
|
55mm -75mm
|
●
|
●
|
Eyepiece
|
WF10X/ 18mm
|
●
|
●
|
WF10X/ 22mm
|
○
|
○
|
|
Objective |
Achromatic objective: objective:4X,10X,40X
(S),100X(S)Oil |
●
|
●
|
Infinity plan objective: 4X,10X,40X
(S),100X(S)Oil |
○
|
○
|
|
Condenser
|
N. A.1.25 Abbe condenser with iris
diaphragm&filter |
●
|
●
|
Focusing
|
Coaxial coarse&fine focusing adjustment
with rack and pinion mechanism Fine focusing scale Value 0.002mm |
●
|
●
|
Collector
|
High brightness light collector
|
●
|
●
|
Light source |
Halogen bulb 6V/20W.AC 85V-230V
|
●
|
●
|
Adjustable brightness
|
Mark” ● ”standard outfit. Mark:” ○ ”optional parts. |
