XSZ-152S

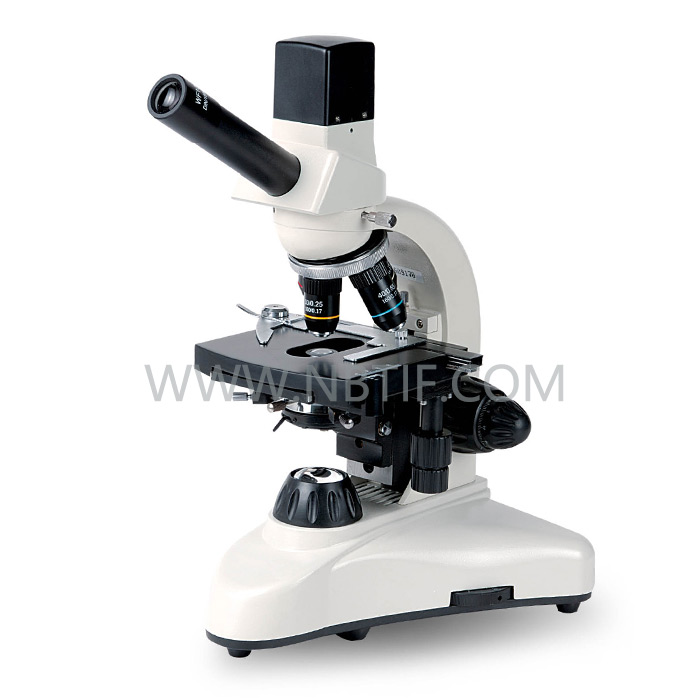

Model XSZ-152 Digital Microscope is a reformation of microscope .It breaks through the utmost of the functions of normal microscope and initiates an epoch in micro technology ! Through installing CMOS transmitting it to computer by digital technology being applied in the microscope enlarges the application range of microscopes.
The image measuring software which is specially developed for digital microscope makes the user observe the image data more clearly .The image displayed on the screen of computer can be enlarged hundreds times more than the one observed by eyepiece .That makes you observe the specimen more clearly and easily.

Specification
Model
XSZ-152S
Viewing head
0.3Mega pixels CMOS Digital Monocular Head
1.3Mega pixels CMOS Digital Monocular Head
Eyepiece
WF10X/ 18mm
Objective
Achromatic objective:   objective:4X,10X,40X(S),100X(S)Oil
Condenser
N. A.1.25 Abbe condenser with iris diaphragm&filter
Focusing
Coaxial coarse&fine focusing adjustment with rack and pinion mechanism
Fine focusing scale Value 0.002mm
Collector
High brightness light collector
Light source
Halogen bulb 6V/20W.AC 85V-230V
Adjustable brightness


Mark” ● ”standard outfit. Mark:” ○ ”optional parts.
