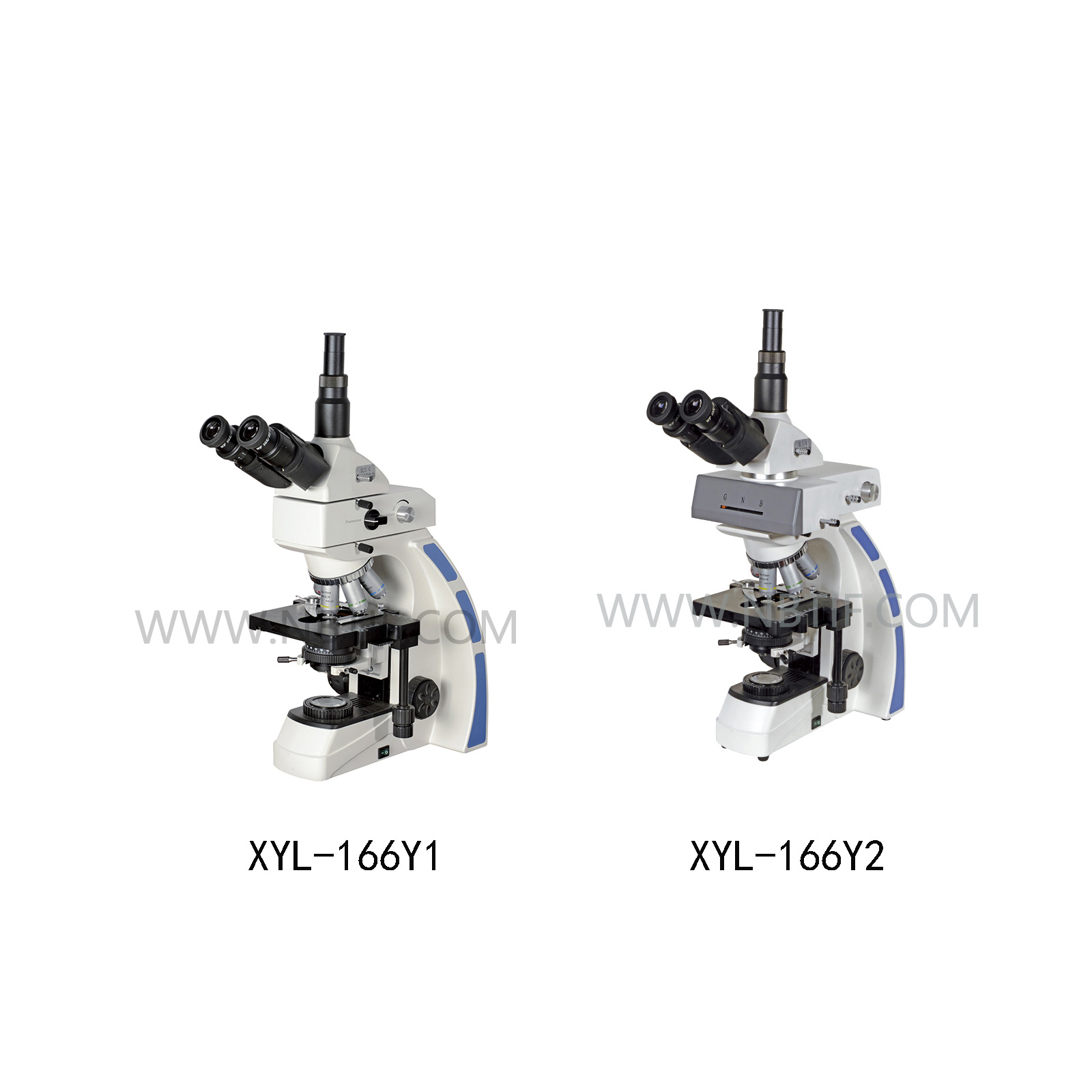

XYL-166Y LED fluorescent microscope is widely used in biology,iatrology,immunology,oncology,genetics,material science,etc.It can also proceed general transmission view.Excellent infinite optical system makes the fluorescent image clearly.LED bulb can work up to 20000 hours.It also has several high efficient fluorescent wave bands for selection,suitable for different fluorescent application.
|
Specification
|
Model
|
||
|
XYL-166Y1
|
XYL-166Y2
|
||
|
Optical system
|
infinite optical system
|
●
|
●
|
|
Viewing Head
|
Compensation Free trinocular Head inclined at 30° interpupillary distance adjustable 48mm-75mm |
●
|
●
|
|
Eyepiece
|
Wide field Plan WF10X/22mm
|
●
|
●
|
|
Objective
|
infinite Plan objective 4X0.10 、 10X/0.25、 40X/0.65、 100X/1.25 Oil |
●
|
●
|
|
Nosepiece
|
Quadruple nosepiece
|
●
|
●
|
|
Stage
|
Double layer mechanical stage
|
●
|
●
|
|
Stage Size : 180mmx 160mm
|
|||
|
Moving Range： 80mmx 50mm
|
|||
|
Focusing
|
Coaxial coarse & fine focusing adjustment, finefocusing scale value 0.002mm |
●
|
●
|
|
Light Source
|
Epi-fluorescent illumination LED 3V/5W，AC85V-230V,brightness adjustment |
●
|
●
|
|
Transmission illumination Kohler illumination with aperture iris diaphragm and field iris diaphragm Halogen Bulb 12V/30W,AC85V-230V. brightness adjustable
|
|||
|
Fluorescent attachment |
B Wave band
|
●
|
|
|
B、G Wave band
|
|
●
|
|
|
Optional Accessory |
Eyepiece: WF15X/17mm,WF20X/12.5mm objective：infinite Plan large N.A fluorescent objectives 4X/0.15、10X/0.35、20X/0.60、40X/0.75、100X/0.90（Dry） Photography attachment and CCD C-mount：0.5X、0.57X、0.75X 1.3Mega、2.0Mega、3.0Mega、5.0Mega、10.0Mega pixels CMOS Digital camera eyepiece CCD Camera,colour 1/3 High resolution 700 TV lines Image analysis software Fluorescent digital CCD G、V、UVWave band |
||
