XDS-412

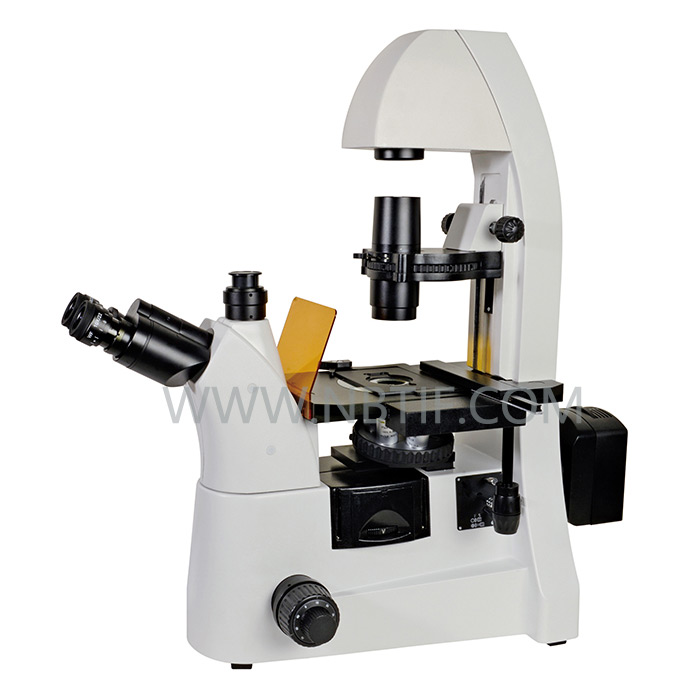

XYL-412Y inverted biological microscope is equipped with excellent infinite optical system,long working distance plan objective,wide field eyepiece.The compact and stable high rigid body fully match the shockproof request of the microscope operation.The ergonomics ideal design meets the needs and makes operation more convenient & comfortable,and broad space available for operator.The instrument is suitable for the microscopic observation of cell tissue and transparent liquid organization.It can also proceed dynamic microscope observation of cultured tissue in the petri dish.It is widely used in scientific research,college & university,medical treatment,inspection and quarantine and farming & stock aising and driary industry depeartment,etc.

Specification
Optical system
infinite optical system
Viewing Head
Compensation Free Trinocular Head Inclinet at 45°(50mm-75mm)
Eyepiece
Plan WF10×/22mm
Objective

Infinity L.W.D.big numerial aperture plan apochromatic objective,

4×/0.15(L.W.D.21.6mm) ,cover-glass thickness 1.5mm

10×/0.3 phase contrast(L.W.D.3mm)cover-glass thickness 1.5mm

20×/0.5 phase contrast(L.W.D.4.27mm)cover-glass thickness 1.5mm

40×(S) /0.6 phase contrast(L.W.D.2.23mm)cover-glass thickness 1.5mm
Nosepiece
Sextupe Nosepiece
Stage
Double layer mechanical stage
Stage Size:305mm×180mm
Moving Range:75mm×40mm
Low XY adjusting hand wheel
Focusing

Coaxial coarse & fine focusing adjustment, fine

focusing scale value 0.001mm

Light Source

3WLED,brightness adjustable

Condenser
Abbe condenser,working distance 28mm
Phase contrast device
Contrast table (28mm),Centering telescope
Filter
Blue、Green、yellow and grosted glass
Optional

Eyepiece:WF10×/20mm,crosshair with reticule 0.1mm

WF15×/17mm、WF20×/12.5mm

Abbe condenser,working distance 70mm, Phase contrast Truuent(70mm)
Photography attachment and CCD C-mount:0.5X、0.57X、0.75X

Infinity L.W.D.big numerial aperture plan apochromatic

phase contrast objective:

4X/0.15(W.D.21.6mm)、40X/0.60(W.D.2.23mm)

1.3Mega、2.0Mega、3.0Mega、5.0Mega、1.0Mega pixels CMOS Digital camera eyepiece

CCD Camera colour 1/3 High resolution 700 TV lines
Image analysis software
